QBK-15AL+PTFE AODD pump
Model: QBK-15

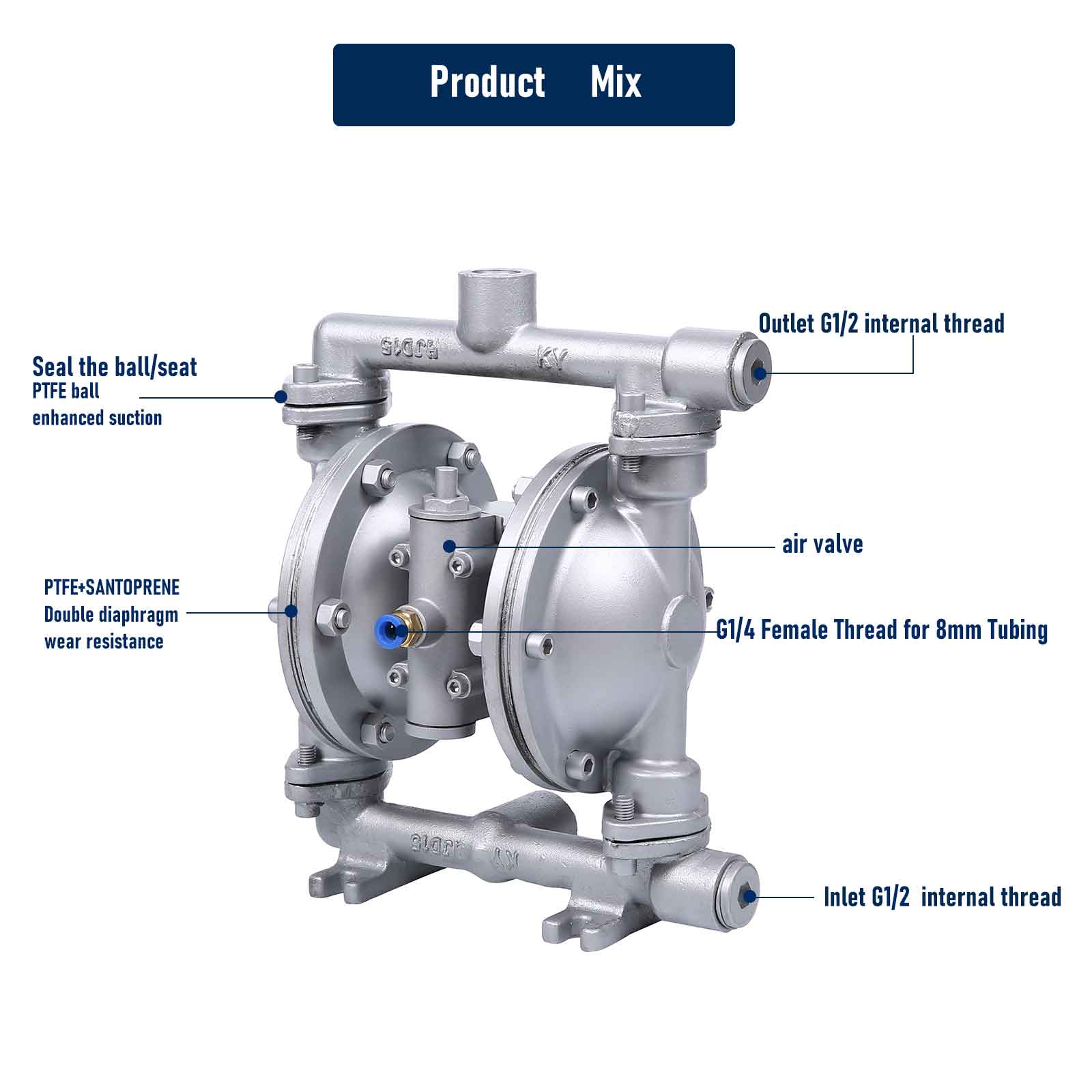

Inlet & Outlet Connection: G1/2 internal thread
Air Inlet Specification: G1/4
Pump Housing Material: Die-cast aluminum alloy
Diaphragm: F46 (FEP) laminated with NBR (Nitrile Butadiene Rubber)
Operating Air Pressure Range: 0.2～0.6 MPa dry compressed air
Rated Flow Range: 0.3～0.8 m³/h
Max Discharge Pressure: 0.6 MPa
Dry Priming Lift: 3 m
Wet Priming Lift: 5 m
Allowable Medium Viscosity: ≤8000 cps
Applicable Medium Temperature: 0℃～70℃
Applicable Environment: Explosion-proof working condition; no electric spark generated, no motor explosion-proof certification required
Allowable Solid Content in Medium: Trace fine grinding particles (compatible with sand mill color paste, ink)
Operation Feature: Permits long-time dry running without shaft seal burnout risk
Introduction

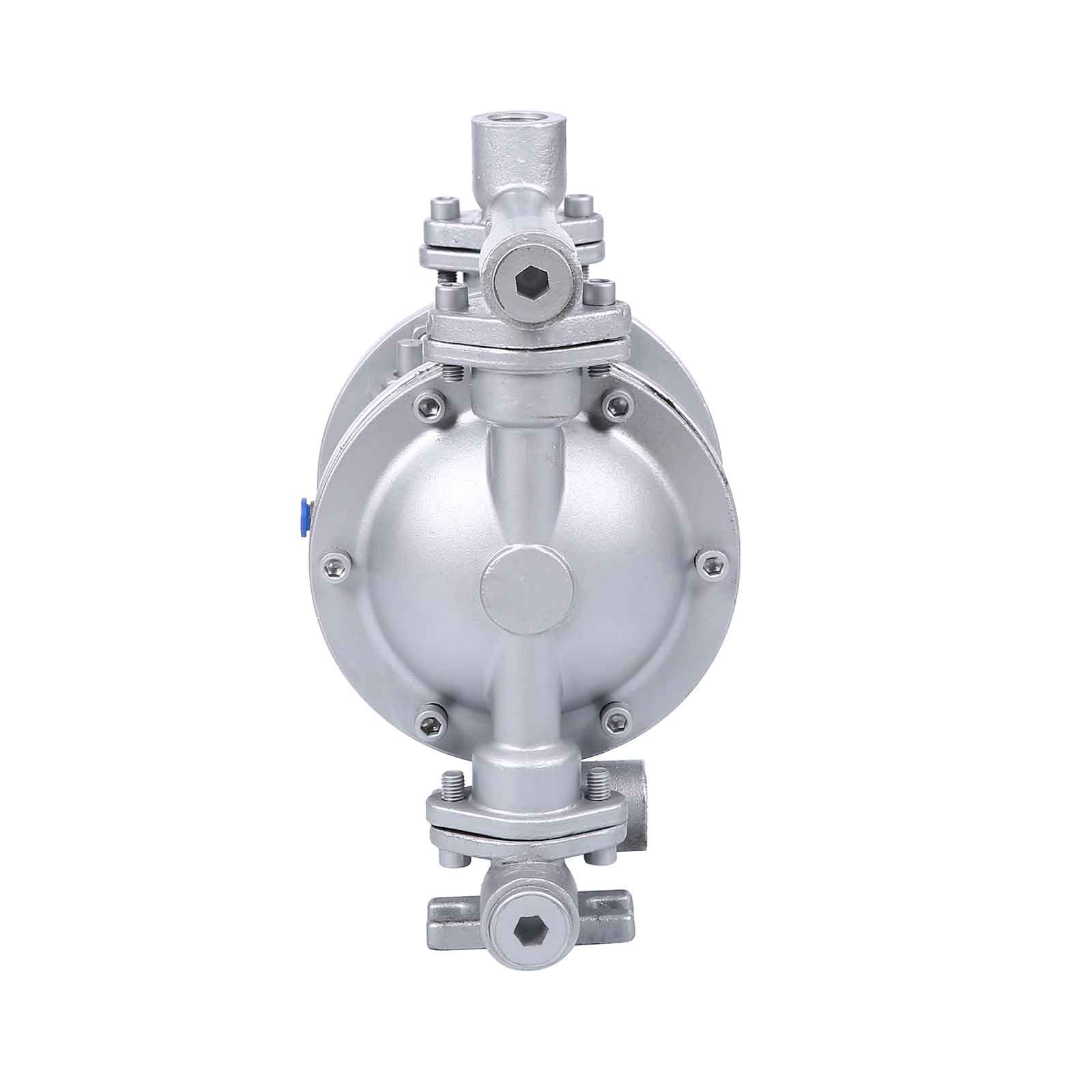

The QBK-15 Aluminum Alloy Air-Operated Double Diaphragm Pump (commonly abbreviated as AODD pump in the industry) is a positive displacement conveying device driven by compressed air. This size 15 model features a compact, lightweight design. Its entire body is cast from die-cast aluminum alloy, balancing light weight, wear resistance and cost-effectiveness. With no motor or shaft seal and zero electric spark generation, it can handle media containing solid particles, high-viscosity fluids, corrosive liquids, and flammable & explosive substances. Widely applied in chemical processing, coatings, wastewater treatment, printing, food auxiliary production, small workshop material transfer and other fields, it serves as a universal core fluid conveying equipment for small-scale working conditions.
